Tutorial 2: Visium

In this tutorial, we show how to apply DOMINO to identify spatial domains on Visium data. As a example, we choose the slice named Visium_Human_Breast_Cancer.h5ad to analyse.

Before running the code, please download the input data via https://zenodo.org/records/17890634

Preparation

import os
import torch
import scanpy as sc

from domino_spatial import DOMINO

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

Reading the data

The necessary input files includes: The gene expression matrix: filtered_feature_bc_matrix.h5; Spatial coordinates: tissue_positions_list.csv; Histology image: the format should be .png.

In this example, position inforamtion has been saved in adata.obsm[‘spatial’].

# read data
data_root = './data/'
dataset_name = 'Human_Breast_Cancer'
slice_path = os.path.join(data_root, dataset_name)

adata = sc.read_visium(slice_path, count_file='filtered_feature_bc_matrix.h5', load_images=True)
adata.var_names_make_unique()

adata

AnnData object with n_obs × n_vars = 3798 × 36601
    obs: 'in_tissue', 'array_row', 'array_col'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'spatial'
    obsm: 'spatial'

Training the model

DOMINO model aims to deeply mine the gene expressions and spatial location information by using a self-supervised multi-view graph contrastive learning framework for learning representations.

# define the model
model = DOMINO.DOMINO(adata, device)

Constructing interaction matrix...
Constructing interaction matrix Done!
generating graphs..

# train the model
adata = model.train()

Initializing model..
Begin to train ST data...
100%|███████████████████████████████████████████████████████████████████████████████| 800/800 [01:00<00:00, 13.28it/s]

adata

AnnData object with n_obs × n_vars = 3798 × 2000
    obs: 'in_tissue', 'array_row', 'array_col'
    var: 'gene_ids', 'feature_types', 'genome', 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm', 'mean', 'std'
    uns: 'spatial', 'hvg', 'log1p'
    obsm: 'spatial', 'graph_neigh', 'adj', 'graph_diffusion', 'adj_diffusion', 'label_CSL', 'feat', 'emb'

Spatial clustering

After model training, the learned representations will be saved in adata.obsm[‘emb’]. Then we use the mclust tool for spatial clustering.

# clustering
print("Clustering...")
from domino_spatial.cluster import clustering
n_clusters = 20

clustering(adata, radius=50, n_clusters=n_clusters, method='mclust', refinement=True)

Clustering...
R[write to console]:                    __           __
   ____ ___  _____/ /_  _______/ /_
  / __ `__ \/ ___/ / / / / ___/ __/
 / / / / / / /__/ / /_/ (__  ) /_
/_/ /_/ /_/\___/_/\__,_/____/\__/   version 6.1.1
Type 'citation("mclust")' for citing this R package in publications.

[1] 0
fitting ...
  |======================================================================| 100%
refining domain..
running optimal transport...
finished refining...

# add ground_truth
import pandas as pd

df_meta = pd.read_csv(slice_path + '/metadata.tsv', sep='\t')
df_meta_layer = df_meta['ground_truth']
adata.obs['ground_truth'] = df_meta_layer.values

adata = adata[~pd.isnull(adata.obs['ground_truth'])]

Visualization

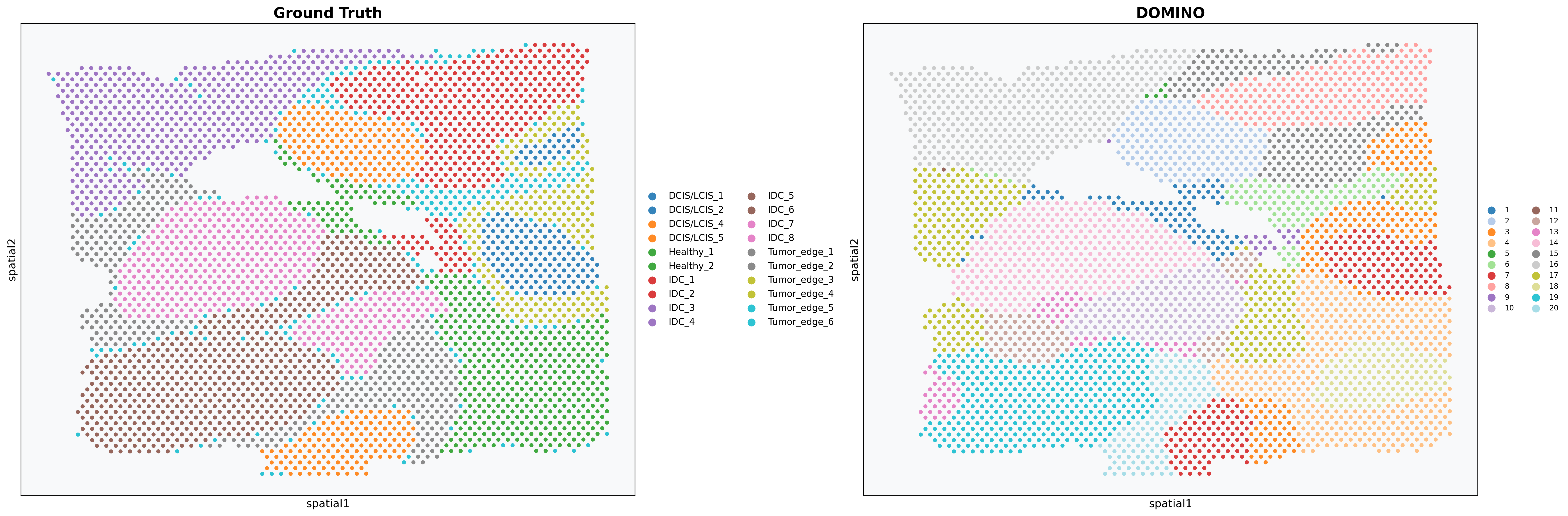

To present the clustering effect of the DOMINO model on this data more clearly, we visually compare the true labels with the clustering labels of DOMINO.

The annotation for the this data is saved in metadata.tsv.

# plotting spatial clustering result
import matplotlib.pyplot as plt

if 'spatial' in adata.obsm and 'X_spatial' not in adata.obsm:
    adata.obsm['X_spatial'] = adata.obsm['spatial']

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(24, 8))

sc.pl.scatter(
    adata,
    basis='spatial',
    color='ground_truth',
    title='Ground Truth',
    size=80,
    palette='tab10',
    alpha=0.9,
    ax=ax1,
    show=False,
    legend_loc='right margin',
    legend_fontsize=10
)

sc.pl.scatter(
    adata,
    basis='spatial',
    color='domain',
    title='DOMINO',
    size=80,
    palette='tab20',
    alpha=0.9,
    ax=ax2,
    show=False,
    legend_loc='right margin',
    legend_fontsize=8
)

for ax in [ax1, ax2]:
    ax.set_facecolor('#f8f9fa')
    ax.title.set_size(16)
    ax.title.set_weight('bold')

plt.subplots_adjust(wspace=0.4)
plt.tight_layout()
plt.show()
